Description

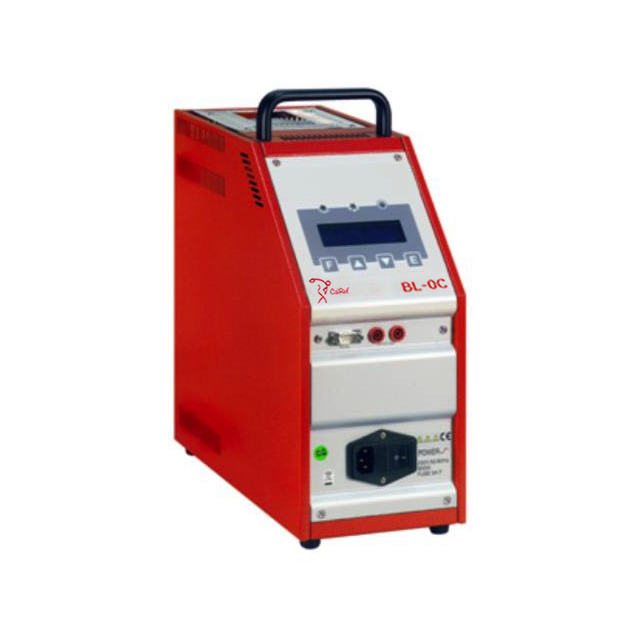

The BL-0C temperature calibrator is a compact instrument for field and laboratory calibrations of transducers, Pt100s, and temperature measurement sensors.
The possibility of generating ascending and descending ramps makes its use possible
for the calibration and verification of thermostats.
A version with a dual input channel is available for calibrating thermocouples using the comparison method (connections for the reference probe and the probe to be calibrated).
Specifications
Measuring range: -30 … 150 °C (with Tamb = 20 °C)
Manhole aperture diameter: 35 mm
Insert hole depth: 130 mm
Stability: ±0.03 °C @ 0 °C
Radial uniformity: ±0.02 °C @ 40 mm
Axial uniformity: ±0.1 °C @ 60 mm from the bottom
Heating rate: 20 °C/min
Gradient: 22 °C/min
Display resolution: 0.1 °C / 0.01 °C
Units of measurement: °C, °F, K
Serial interface: RS232
Power supply: 115 or 230 V – 50/60 Hz – 300 VA
Dimensions: 160 x 340 x 330 mm
Weight: 8 kg (17 kg with top box and packaging)
Made in Italy
Documentation available in the Download area.
