Description

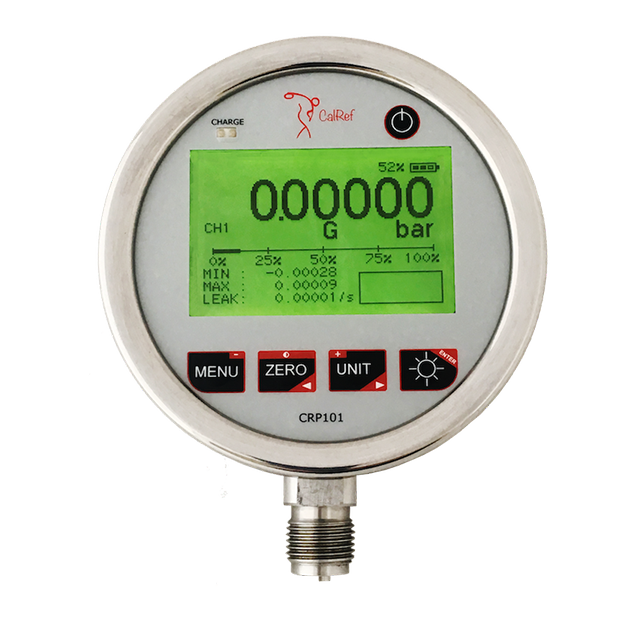

CRP101 – Digital test and calibration pressure gauge with optional electrical/temperature input (0–20 mA, 0–10 V or 4-wire Pt100)
Compact, with a large display and simple to use. The CRP101 digital gauge is suitable for the calibration and testing of pressure instruments such as: analogue pressure gauges, digital pressure gauges, pressure transducers, pressure transmitters and pressure switches, etc. Configurable with a second input for a barometer, 4-wire PT100 temperature probe, current measurements or voltage measurements. Ideal for field calibrations when paired with an IBL dry-block calibrator and an MVP-600 or M-10 hand pump.
Available models:
Numerous models are available depending on the measuring range and the required accuracy class.
Specifications
• Ranges: from 200 mbar to 3000 bar
• Accuracy up to 0.02 % FS of pressure
• Accuracy up to 0.02 % RDG for electrical signals
• Pressure resolution better than 0.001 % FS
• Current resolution: 0.001 mA
• Voltage resolution: 0.001 V
• Temperature resolution: 0.001 °C
• Temperature characterisation (14…122 °F / -10 °C to 50 °C)
• Data logger
• RS232 connection
• Process connection: 1/2″ BSPM or 1/4″ BSPM
• Electrical connections: 2 x 4 mm banana
• NiMH rechargeable batteries
Measuring fluid
• Wetted parts: Stainless steel
• Seal: None, NBR or Viton depending on the measuring ranges.
• Case: Stainless steel
Supplied with a traceable calibration report
Optional calibration certificate issued by a LAT accredited centre
Dimensions: Diam. 129 mm Thickness 47 mm
Weight: 0.5 kg
Warranty: 1 year, extendable to 24 months
Made in Italy
