Description

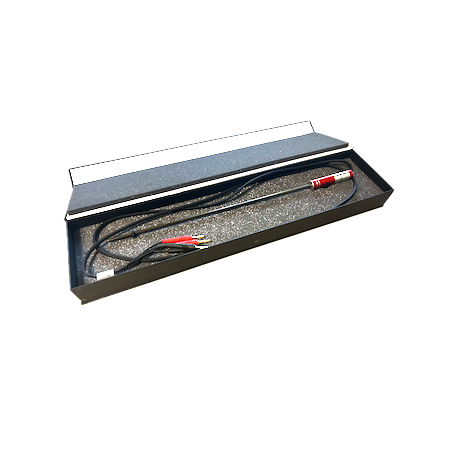

Pt100 type N – Standard resistance thermometer for medium temperatures
These temperature probes are used for accurate temperature measurements or as reference standards. Each thermometer can be supplied with a calibration certificate issued by a DAkkS or ACCREDIA accredited centre and calibrated either by comparison or at fixed points. With fixed-point calibration, the declarable measurement uncertainty ranges from 11 mK to 13 mK. The typical annual drift is 2.5 mK.
The connection, as well as other parameters, can be configured according to the customer's needs.
Specifications
• Measuring range: -100 °C to 420 °C
• Nominal resistance: Pt100 (100 Ohm)
• Measurement uncertainty: from 6 mK to 21 mK
• Typical annual drift: 2.5 mK
• Connection type: 4-wire
• Connection: as per configuration
• Sheath material: Metal
• Internal cable: Silver
• Dimensions:
– grip: Diam. 20 mm x 100 mm
– diameter: 6mm
– length: according to configuration
– connection cable: according to configuration
• R0: 100 Ohm ± 0.05 Ohm
• Alpha: 0.003850 ± 0.000005
• Self-heating: 5 mK to 10 mK (recommended measuring current 1 mA)
• Sensor tolerance: 1/10 DIN – IEC 60751:2008
Options
PT100 from -100 °C to 420 °C
DAkkS fixed-point calibration – DAkkS fixed-point calibration
DAkkS calibration CF – DAkkS calibration by comparison
ACCREDIA traceable calibration – Comparison calibration issued by an ACCREDIA accredited laboratory for temperature
Made in Europe
Documentation available in the Download area.
